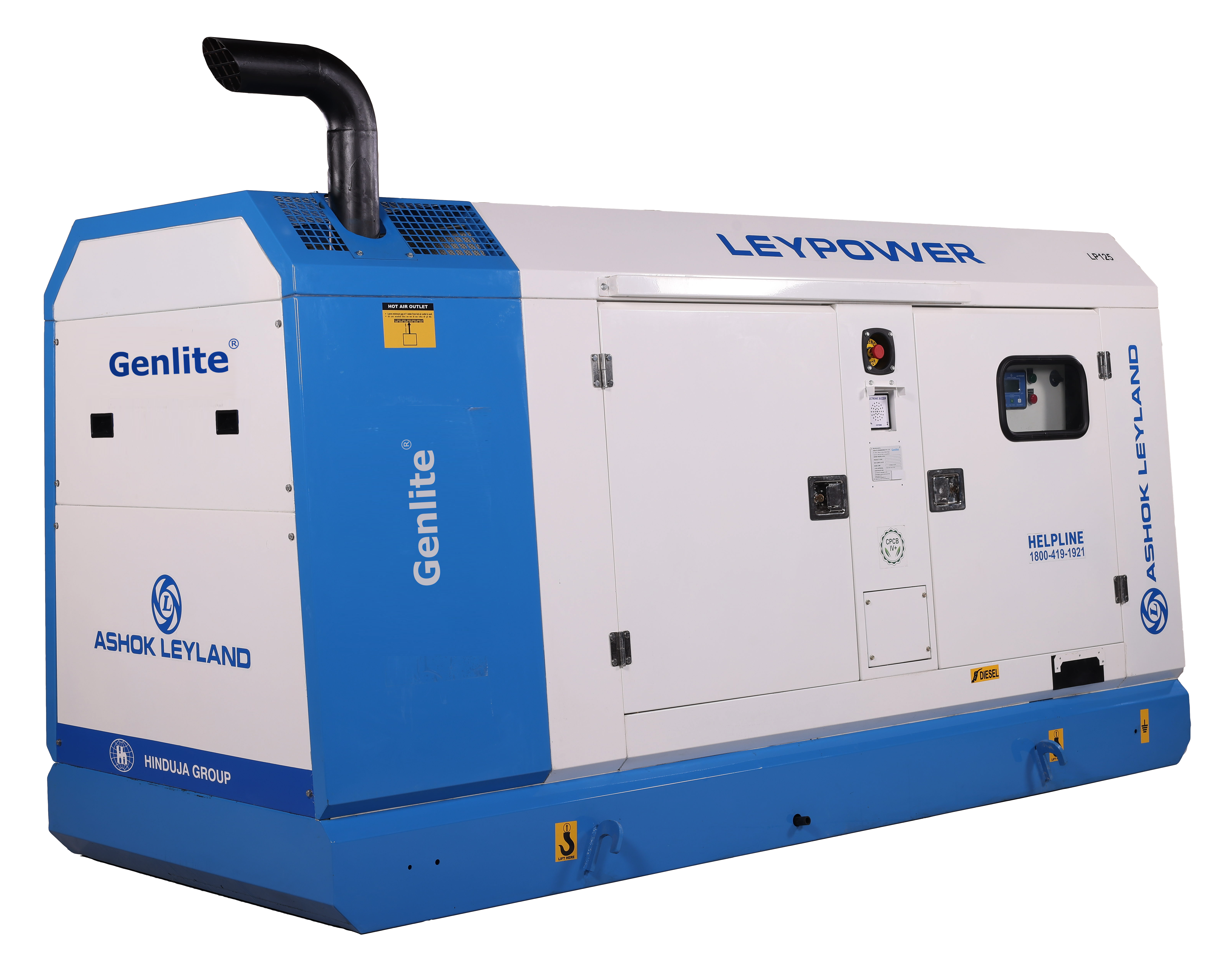

LP100 Model Leypower 100 kVA 3 phase Diesel Generator set powered by Ashok Leyland make engine model H4G4DE100 developing 122 HP @ 1500 RPM coupled with LP Alternator, Standard Control Panel, Battery, complete with type approved canopy and all standard accessories.
Key Features
5 Year Warranty
Lowest Fluid Consumption
Timely Service and Maintenance
Ready Stock / Early Delivery
Product Category
Liquid Cooled
Product Brand
Leypower - Ashok Leyland
Technical Specification
Power Rating* (kVA)
100 ( * Power Rating- As per BS 5514/ ISO 3046/ ISO 8528 under standard reference conditions) Electric Power (kWe) 80reference conditions)
Electric Power (kWe)
80
Rated Current (A)
139
DG Size - L X W (mm)
2850 X 1300
H (Including Base) (mm)
1610
DG Weight Approx. (Kg)
1900
Fuel Tank Capacity (L)
170
Battery Capacity (Ah)
90
System DC Voltage (V)
12
Engine Model
H4G4DE100
Engine Rated (kW/hp)
92/ 122
Aspiration
TCIC
No. of Cylinders and Configuration
4, Inline
Bore x Stroke (mm)
104 X 118
Displacement (L)
4
Compression ratio
16.5 ± 0.5 : 1
Lube Oil Capacity Approx. (L)
12
Coolant Capacity Approx. (L)
20
Governing Class
A0
Governer Used
Electronic
Oil Change Period
750 hrs or 1 year
Lube Oil specification
Gulf Leypower XLE
Generator Controller
GC 1206
