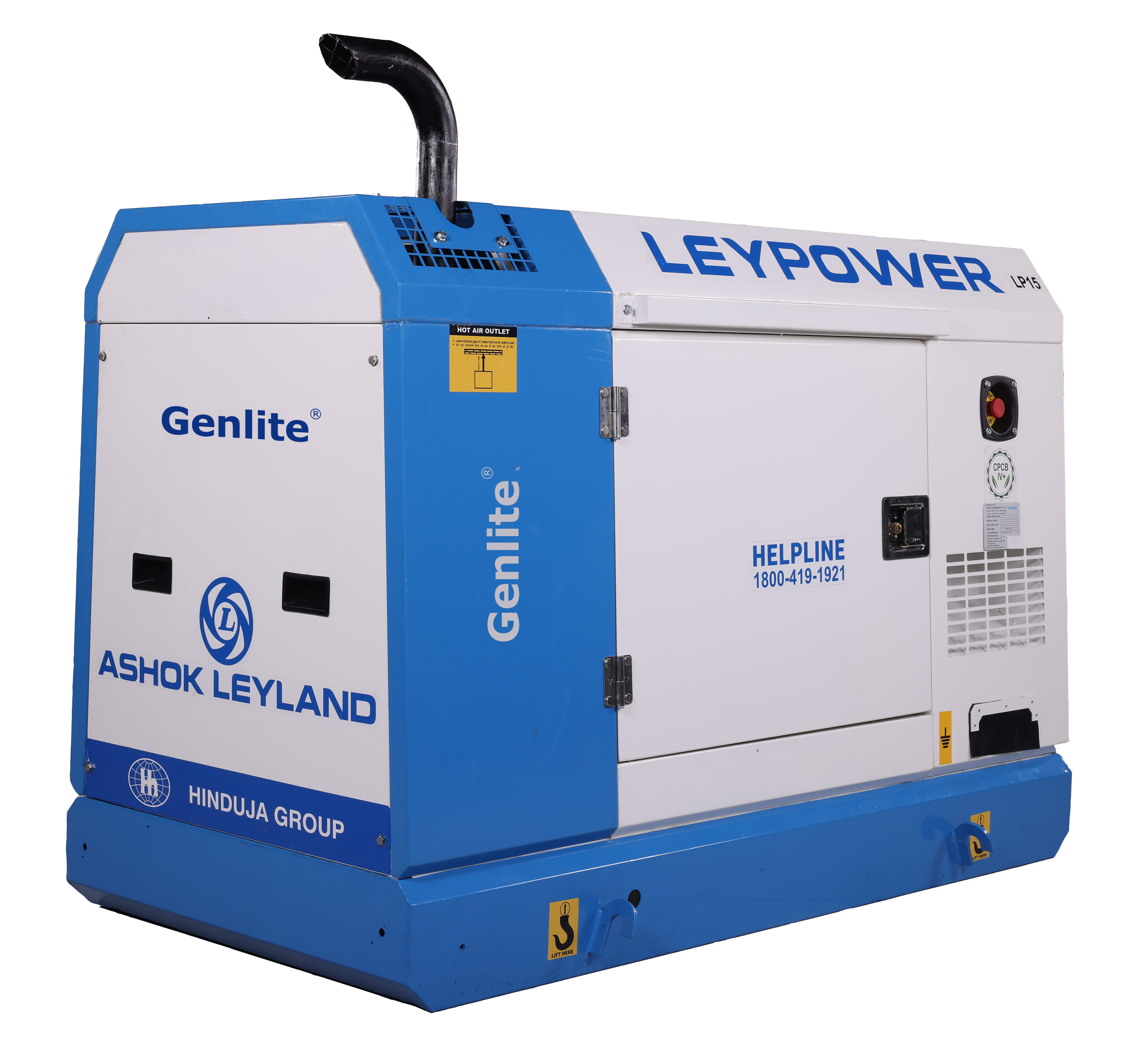

GE-LP15 Model Leypower 15 kVA Diesel Generator set powered by Ashok Leyland make engine model H2G4DM15 developing 19.5 HP @ 1500 RPM coupled with LP Alternator, Standard Control Panel, Battery, complete with type approved canopy and all standard accessories.
Key Features
5 Year Warranty
Lowest Fluid Consumption
Timely Service and Maintenance
Ready Stock / Early Delivery
Product Category
Liquid Cooled
Product Brand
Leypower - Ashok Leyland
Technical Specification
Power Rating* (kVA)
15 ( * Power Rating- As per BS 5514/ ISO 3046/ ISO 8528 under standard reference conditions)
Electric Power (kWe)
12
Rated Current (A)
21
DG Size - L X W (mm)
1760*900
H (Including Base) (mm)
1200
DG Weight Approx. (Kg)
676
Fuel Tank Capacity (L)
55
Battery Capacity (Ah)
60
System DC Voltage (V)
12
Engine Model
H2G4DM15
Engine Rated (kW/hp)
14.6/ 19.5
Aspiration
NA
No. of Cylinders and Configuration
2, Inline
Bore x Stroke (mm)
104 x 118
Displacement (L)
2
Compression ratio
16.5 ± 0.5 : 1
Lube Oil Capacity Approx. (L)
6
Coolant Capacity Approx. (L)
10
Governing Class
A1
Governer Used
Mechanical
Oil Change Period
600 hrs or 1 year
Lube Oil specification
Gulf Leypower XLE
Gulf Leypower XLE
GC 902
