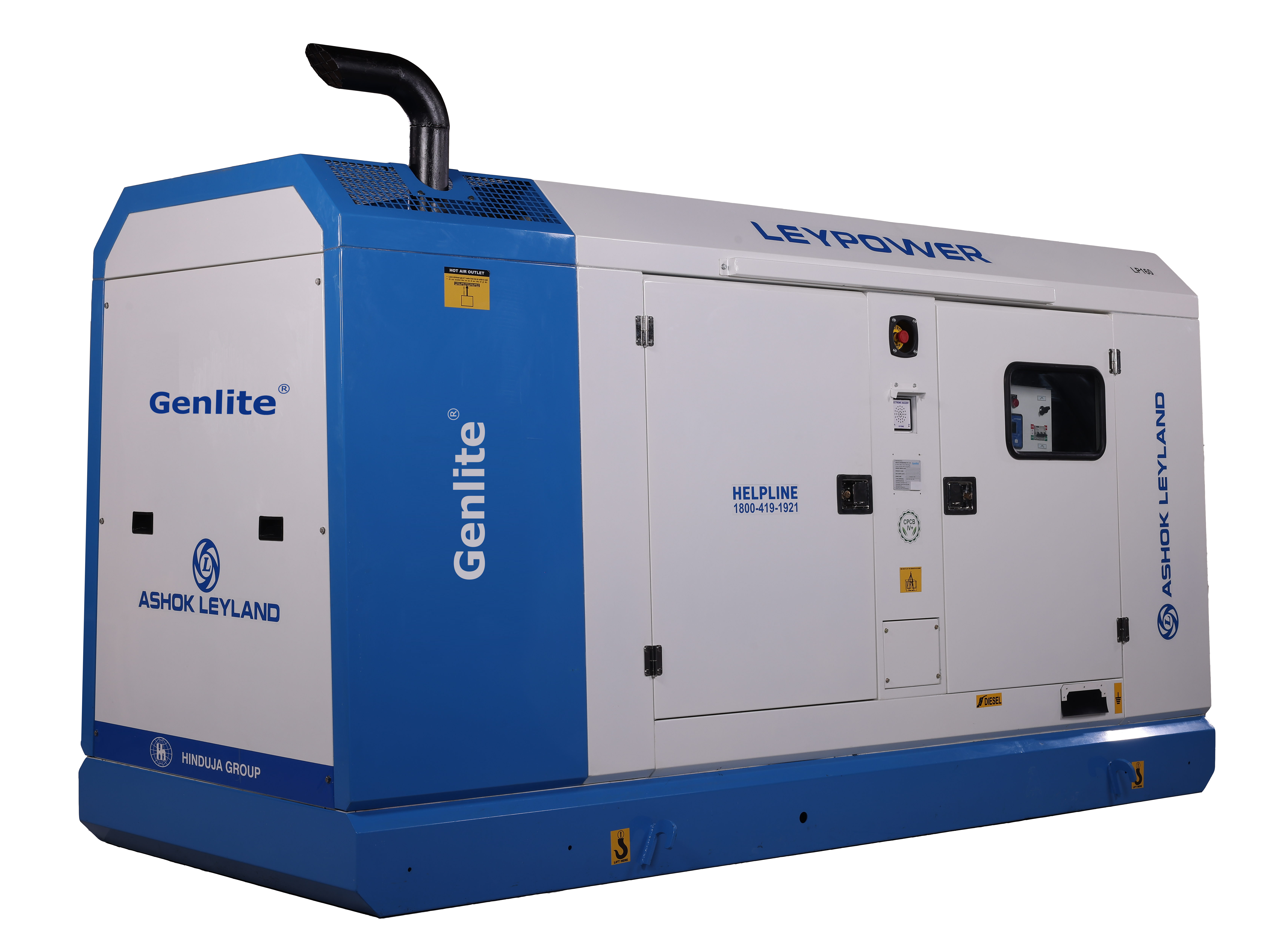

GE-LP160 Model Leypower 160 kVA Diesel Generator set powered by Ashok Leyland make engine model H6G4DE160 developing 197 HP @ 1500 RPM coupled with Leroy Somer Alternator, Standard Control Panel, Battery, complete with type approved canopy and all standard accessories.
Key Features
5 Year Warranty
Lowest Fluid Consumption
Timely Service and Maintenance
Ready Stock / Early Delivery
Product Category
Liquid Cooled
Product Brand
Leypower - Ashok Leyland
Technical Specification
Power Rating* (kVA)
160 ( * Power Rating- As per BS 5514/ ISO 3046/ ISO 8528 under standard reference conditions)
Electric Power (kWe)
128
Rated Current (A)
223
DG Size - L X W (mm)
3500 X 1400
H (Including Base) (mm)
1830
DG Weight Approx. (Kg)
2210
Fuel Tank Capacity (L)
200
Battery Capacity (Ah)
105
System DC Voltage (V)
12
Engine Model
H6G4DE160
Engine Rated (kW/hp)
147/ 197
Aspiration
TCIC
No. of Cylinders and Configuration
6, Inline
Bore x Stroke (mm)
104 x 118
Displacement (L)
6
Compression ratio
16.5 ± 0.5 : 1
Lube Oil Capacity Approx. (L)
18
Coolant Capacity Approx. (L)
24
Governing Class
A0
Governer Used
Electronic
Oil Change Period
750 hrs or 1 year
Lube Oil specification
Gulf Leypower XLE
Generator Controller
GC 1206
