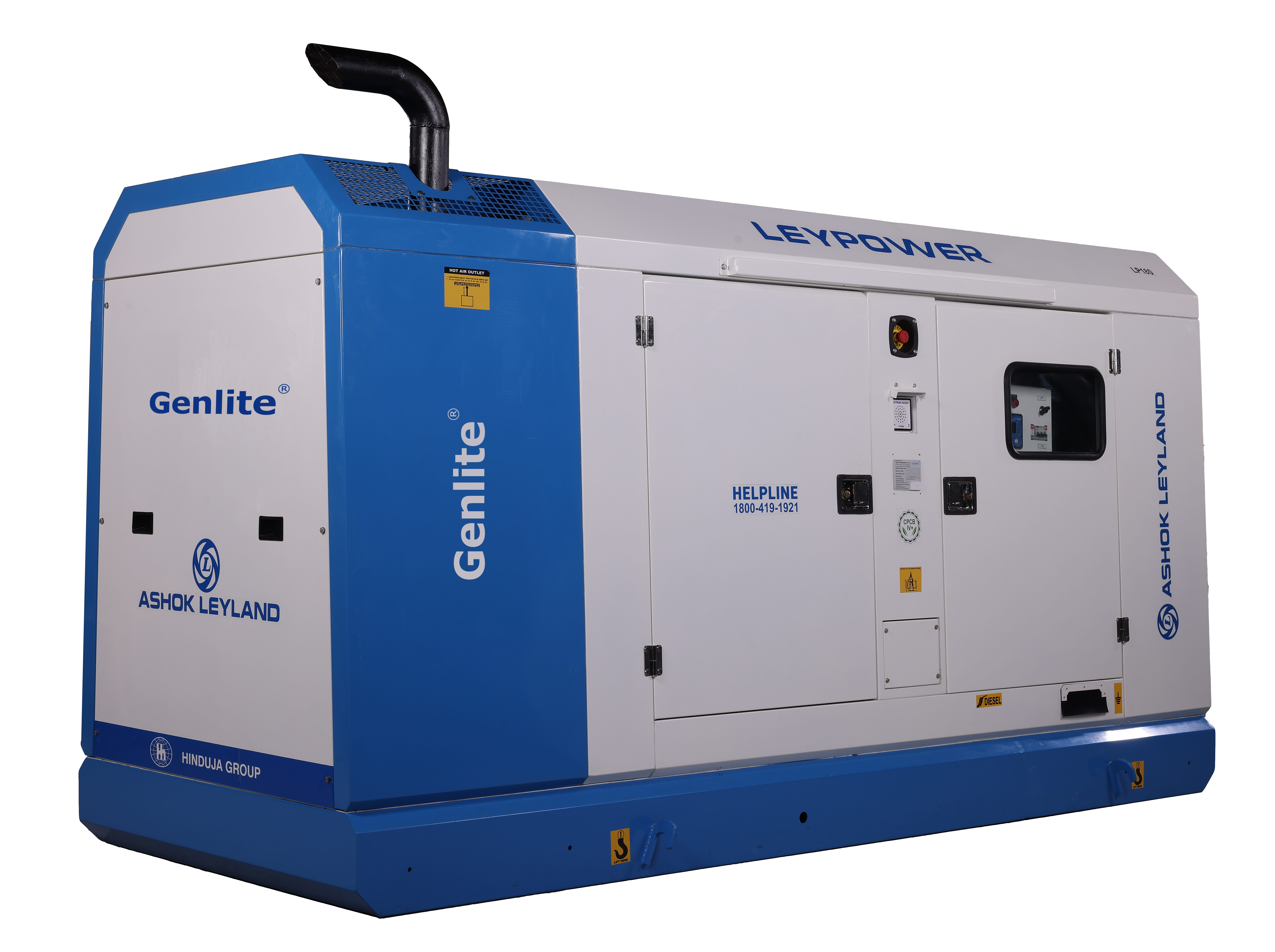

GE-LP250 Model Leypower 200 kVA Diesel Generator set powered by Ashok Leyland make engine model A6G4DE250 developing 303 HP @ 1500 RPM coupled with LP Alternator, Standard Control Panel, Battery, complete with type approved canopy and all standard accessories.
Key Features
5 Year Warranty
Lowest Fluid Consumption
Timely Service and Maintenance
Ready Stock / Early Delivery
Product Category
Liquid Cooled
Product Brand
Leypower - Ashok Leyland
Technical Specification
Power Rating* (kVA)
250 ( * Power Rating- As per BS 5514/ ISO 3046/ ISO 8528 under standard reference conditions)
Electric Power (kWe)
200
Rated Current (A)
346
DG Size - L X W (mm)
4700 X 1600
H (Including Base) (mm)
2050
DG Weight Approx. (Kg)
4500
Fuel Tank Capacity (L)
450
Battery Capacity (Ah)
105*2
System DC Voltage (V)
24
Engine Model
A6G4DE250
Engine Rated (kW/hp)
223/ 303
Aspiration
TCIC
No. of Cylinders and Configuration
6, Inline
Bore x Stroke (mm)
112 X 135
Displacement (L)
7.98
Compression ratio
17.5 ± 0.5 : 1
Lube Oil Capacity Approx. (L)
28
Coolant Capacity Approx. (L)
55
Governing Class
A0
Governer Used
Electronic
Oil Change Period
750 hrs or 1 year
Lube Oil specification
Gulf Leypower XLE
Generator Controller
GC 1206
