GE-LP45 | kVA rating 45

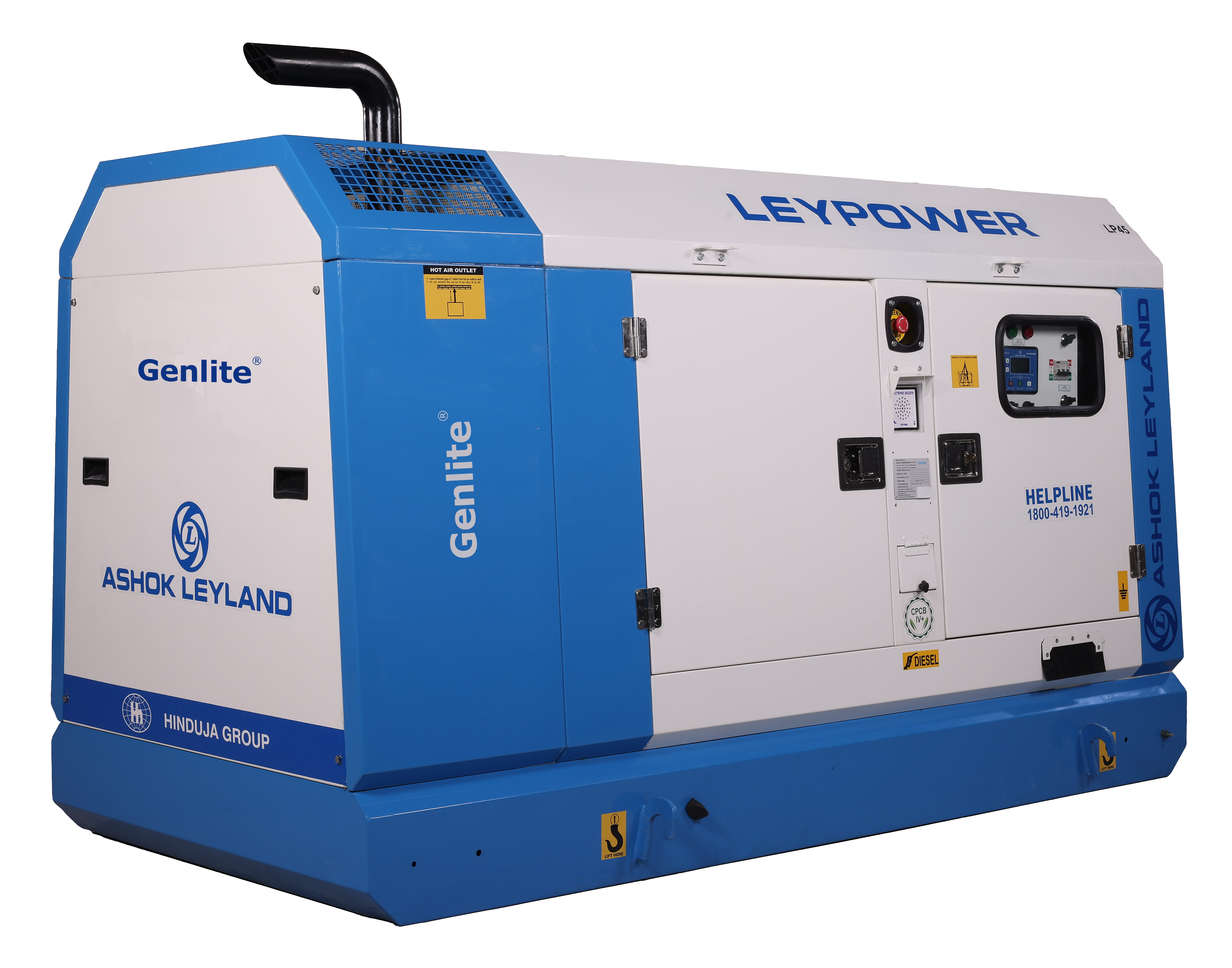

GE-LP45 Model Leypower 45 kVA 3 phase Diesel Generator set (415V; 36kW) powered by Ashok Leyland make engine model H4G4DE45 developing 56.5 HP @ 1500 RPM coupled with LP Alternator, Standard Control Panel, Battery, complete with type approved canopy and all standard accessories.

Key Features
5 Year Warranty
Lowest Fluid Consumption
Timely Service and Maintenance
Ready Stock / Early Delivery
Product Category
MHP
Product Brand
Leypower - Ashok Leyland
Technical Specification
Power Rating* (kVA)
45 ( * Power Rating- As per BS 5514/ ISO 3046/ ISO 8528 under standard reference conditions)
Electric Power (kWe)
36
Rated Current (A)
63
DG Size - L X W (mm)
2500 X 1200
H (Including Base) (mm)
1450
DG Weight Approx. (Kg)
1100
Fuel Tank Capacity (L)
100
Battery Capacity (Ah)
90
System DC Voltage (V)
12
Engine Model
H4G4DE45
Aspiration
TCIC
No. of Cylinders and Configuration
4, Inline
Bore x Stroke (mm)
104 X 113
Displacement (L)
3.84
Compression ratio
16.5 ± 0.5 : 1
Lube Oil Capacity Approx. (L)
8.5
Coolant Capacity Approx. (L)
14
Governing Class
A0
Governer Used
Electronic
Oil Change Period
750 hrs or 1 year
Lube Oil specification
Gulf Leypower XLE
Generator Controller
GC 1206
