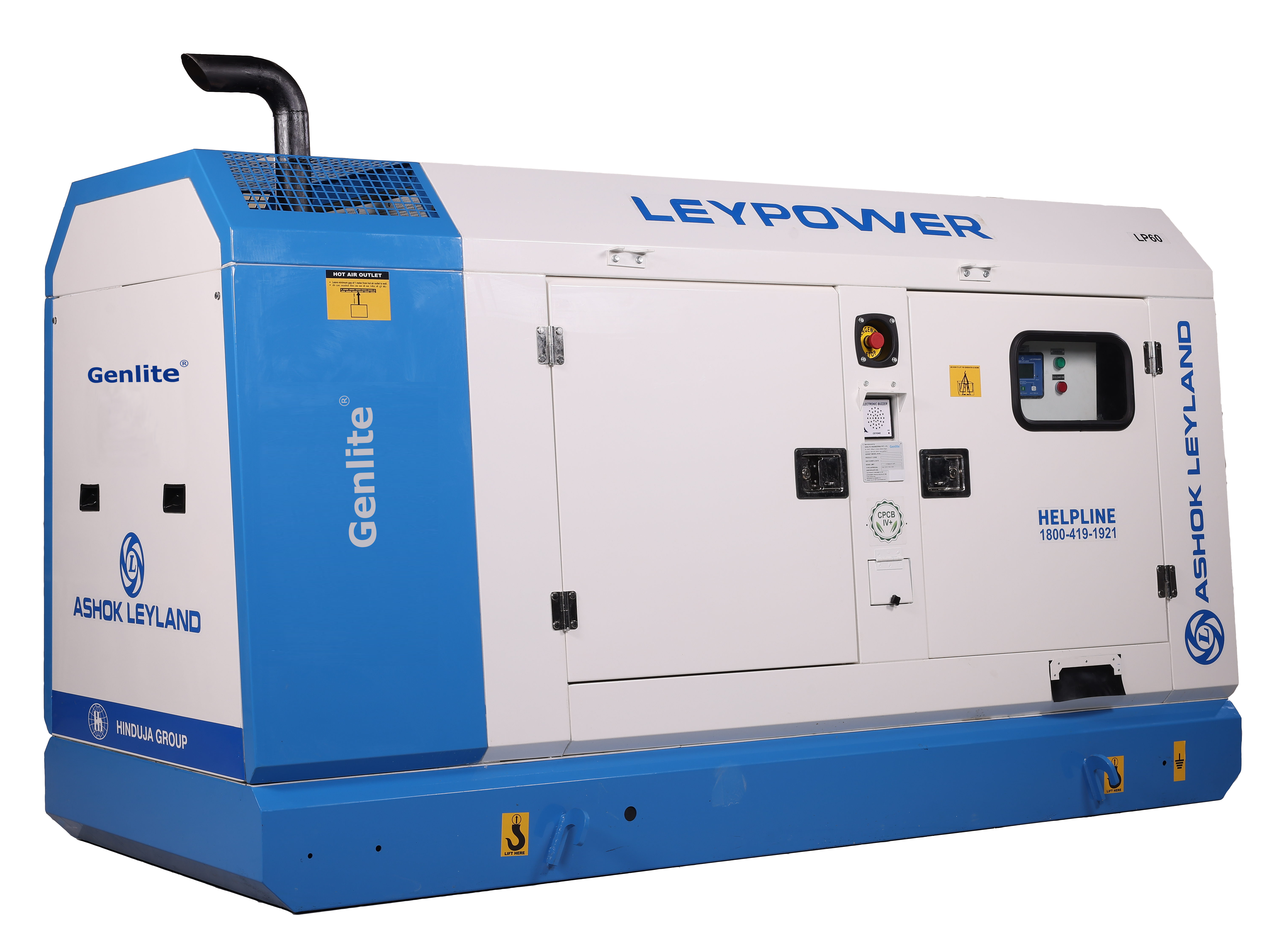

GE-LP60 Model Leypower 60 kVA 3 phase Diesel Generator set powered by Ashok Leyland make engine model H4G4DE60 developing 72 HP @ 1500 RPM coupled with LP Alternator, Standard Control Panel, Battery, complete with type approved canopy and all standard accessories.
Key Features
5 Year Warranty
Lowest Fluid Consumption
Timely Service and Maintenance
Ready Stock / Early Delivery
Product Category
Liquid Cooled
Product Brand
Leypower - Ashok Leyland
Technical Specification
Power Rating* (kVA)
60 ( * Power Rating- As per BS 5514/ ISO 3046/ ISO 8528 under standard reference conditions)
Electric Power (kWe)
48
Rated Current (A)
84
DG Size - L X W (mm)
2700 X 1200
H (Including Base) (mm)
1510
DG Weight Approx. (Kg)
1380
Fuel Tank Capacity (L)
140
Battery Capacity (Ah)
90
System DC Voltage (V)
12
Engine Model
H4G4DE60
Engine Rated (kW/hp)
54/ 72
Aspiration
TCIC
No. of Cylinders and Configuration
4, Inline
Bore x Stroke (mm)
104 X 113
Displacement (L)
3.84
Compression ratio
16.5 ± 0.5 : 1
Lube Oil Capacity Approx. (L)
8.5
Coolant Capacity Approx. (L)
16
Governing Class
A0
Governer Used
Electronic
Oil Change Period
750 hrs or 1 year
Lube Oil specification
Gulf Leypower XLE
Generator Controller
GC 1206
