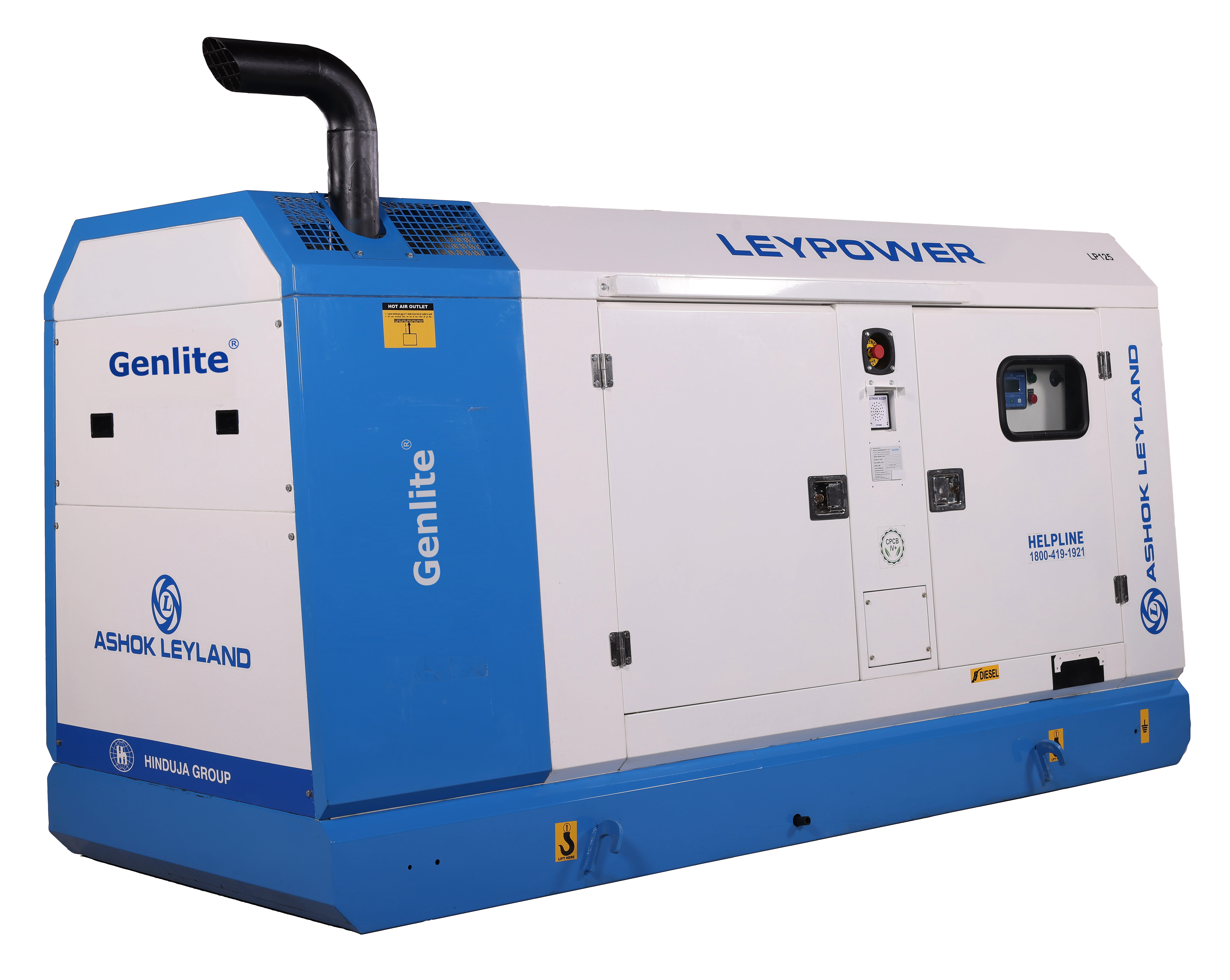

LP125 kVA 3 phase Diesel Generator set (415V; 100kW) powered by Ashok Leyland make engine model H6G4DE125 developing 154 HP @ 1500 RPM coupled with Leroy Somer Alternator, Standard Control Panel, Battery, complete with type approved canopy and all standard accessories.
Key Features
5 Year Warranty
Lowest Fluid Consumption
Timely Service and Maintenance
Ready Stock / Early Delivery
Product Category
MHP
Product Brand
Leypower - Ashok Leyland
Technical Specification
Power Rating* (kVA)
125 ( * Power Rating- As per BS 5514/ ISO 3046/ ISO 8528 under standard reference conditions)
Electric Power (kWe)
100
Rated Current (A)
174
DG Size - L X W (mm)
3100 X 1300
H (Including Base) (mm)
1600
DG Weight Approx. (Kg)
2050
Fuel Tank Capacity (L)
200
Battery capacity
90
System DC voltage
12
Engine Model
H6G4DE125
Engine rated
116/ 154
Aspiration
TCIC
No. of cylinders & configuration
6, Inline
Bore x Stroke
104 X 118
Displacement
6
Compression ratio
16.5 + 0.5 : 1
Lube oil capacity approx.
18
Coolant capacity approx.
22
Governing class
A0
Governer Used
Electronic
Oil Change Period
500 hrs or 1 year
Lube Oil specification
Gulf Leypower XLE
Generator Controller
GC 1206
